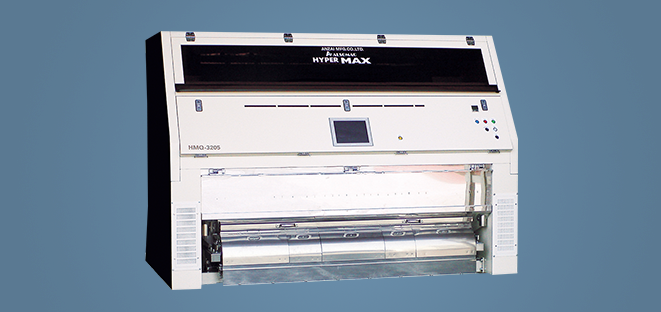

Optical Sorter Hyper Max HMT

Optical Sorter Hyper Max HMT

Spedizione in 48h

Se il pezzo è in pronta consegna i vostri ordini vengono spediti entro due giorni dal pagamento.

Garanzia di 365 giorni

Copertura completa per qualsiasi difetto di fabbricazione.

Pagamenti sicuri

Puoi usare i principali metodi di pagamenti internazionali.

Description

High capacity: 25t~10t/h
High efficency 320x channels
New electronics technology with control EJ
CCD camera system with multiple sensitivity
Color touch panel allows easily use
Sort parameters can be saved as a back-up on the CF card
Auto-Calibration system
Easy cleaning
Memory Errors system
Diagnostic Remote System, (Optional Net Sort)

- Flexibility: choice of “all 1 review/1st pass and review/1st and 2nd review

- Multiple sensitivity with the new CCD sensors: optical sorter Anzai Hyper Max offers many applications thanks to its multiple sensitivity

Intelligent ejectors: ejectors have an intelligent control system that prevents the product from ending up in the discard good

Easy use and memories: large color control panel touch screen. In addition, all settings can be saved to memory selection

Auto-calibration: optical sorter Anzai Hyper Max periodically calibrates automatically to guarantee the highest performance selection

Easy to clean: optical sorter Anzai Hyper Max is easy to clean because it is designed taking into account the routine maintenance

Boot system special vibrators: vibrators are a system that prevents the loss of product at startup and it’s inserted after the passage of the brush

Technical Features

Model n. HMQ-3205

Capacity for White Rice (0,1-3 % contamination) (T/h): 25-20
Lenght: 1410 mm
Depth: 2360 mm
Height: 1650 mm
Power Consumption: 3-Phase 200V
Normal Consumption: 4,6 Kw
Max Consumption: 6,15 Kw
Air Consumption (l/min): 1500 – 3500
Air Requirement for Dust Collector (mc/min): 20
Weight: 1370 kg
Chute Plain or U-shape
n. Chute (200 mm largh.) 8
Sensor NIR Front + Rear
n. di memory 100

Model n. HMT-3205

Capacity for White Rice (0,1-3 % contamination) (T/h): 25-20
Lenght: 1410 mm
Depth: 2360 mm
Height: 1650 mm
Power Consumption: 3-Phase 200V
Normal Consumption: 4,6 Kw
Max Consumption: 6,15 Kw
Air Consumption (l/min): 1500 – 3500
Air Requirement for Dust Collector (mc/min): 20
Weight: 1370 kg
Chute Plain or U-shape
n. Chute (200 mm largh.) 8
Sensor NIR Front
n. di memory 100

Model n. HMD-3205

Capacity for White Rice (0,1-3 % contamination) (T/h): 25-20
Lenght: 1410 mm
Depth: 2360 mm
Height: 1650 mm
Power Consumption: 3-Phase 200V
Normal Consumption: 4,3 Kw
Max Consumption: 5,85 Kw
Air Consumption (l/min): 1500 – 3500
Air Requirement for Dust Collector (mc/min): 20
Weight: 1370 kg
Chute Plain or U-shape
n. Chute (200 mm largh.) 8
Sensor NIR –
n. di memory 100

Brochure

Witness the full effectiveness of Anzai Optical Sorters in action

Video Optical Sorters Anzai
