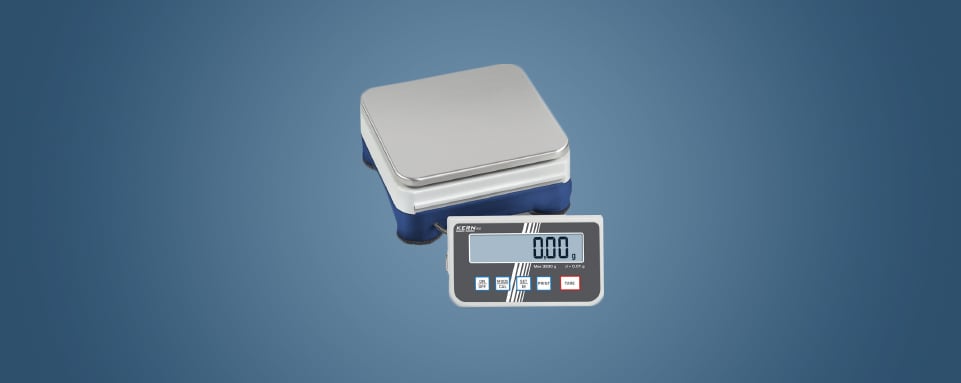

Compact laboratory balance KERN PCD

High-resolution precision balance with removable display for maximum flexibility

Features

  • Laboratory balance with separate platform: Ideal when working in the glove bag or fume cupboard. Particularly practical for weighing toxic, volatile or contaminated substances
  • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
  • Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m², or similar
  • Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result

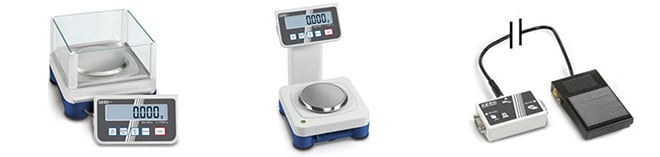

  • 1 Draught shield standard for models with weighing plate size A, weighing space W×D×H 146×146×80 mm
  • Protective working cover included with delivery

Technical data

  • Large backlit LCD display, digit height 21 mm
  • Dimensions weighing surface

    A ∅ 105 mm

    B W×D 160×160 mm, see larger picture

  • Weighing plate material

    A plastic, with conductive lacquer

    B stainless steel

  • Dimensions of display device W×D×H 140×46×75 mm
  • Optional battery operation, 9 V-Block not included in scope of deliveryw, operating time up to 12 h, AUTO-OFF function to preserve the battery
  • Overall dimensions W×D×H 165×280×75 mm
  • Cable length of display device approx. 1,2 m
  • Net weight approx. 1,2 kg
  • Permissible ambient temperature 5 °C/35 °C

Accessories

  • Protective working cover over the display device, scope of delivery: 5 items, KERN PCD-A05S05
  • 2 Stand to elevate display device, height of stand approx. 250 mm, KERN PCD-A03
  • Rechargeable battery pack internal, operating time up to 24 h without backlight, charging time approx. 10 h,KERN PCD-A04
  • 3 Foot switch, ideal when the application requires two free hands. TARE or PRINT function can be selected. Scope of delivery: foot switch, junction box, connection cable. For the PRINT function you will need the RS-232 interface cable, KERN YKF-01
  • RS-232/Ethernet adapter for connection to an IP-based Ethernet network,

    KERN YKI-01

  • Individual header data: the free software can be used to print 4 header lines on the printout when using printers 911-013, YKN-01, YKB-01N, YKE-01 and YKC-01 (in combination with YKI-02)
  • Further details, plenty of further accessories and suitable printers see Accessories

Brochure

Download the brochure of Compact laboratory balance KERN PCD
